Effective cooling of jaw crusher pitman bearings is critical for maintaining productivity in stone crushing and sand-making plants. Modern jaw crushers like the C6X Series incorporate advanced cooling systems to extend bearing life under heavy loads.
Primary methods include:
1. Forced-air circulation with integrated fans
2. Water-cooled bearing housings (for extreme conditions)
3. Heat-conductive grease channels
| Model | Bearing Size | Cooling Method | Max Ambient Temp |
|---|---|---|---|
| C6X160 | 240×500×180mm | Air+Grease Channel | 45°C |
| C6X200 | 300×600×220mm | Water Jacket | 60°C |

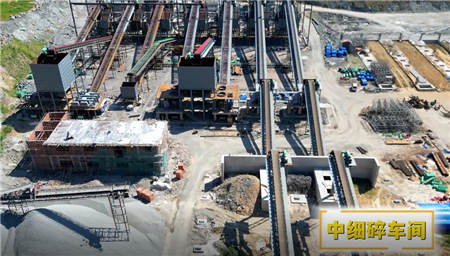

In typical granite processing plants, cooled jaw crushers work with:
– Primary vibrating feeder (GZD1100×4200)
– Hydraulic cone crusher (HPT300) secondary stage
– VSI sand maker (VSI1140) for shaping
Q: How often should cooling systems be inspected?
A: Weekly visual checks, with full maintenance every 500 operating hours.
Q: Can retrofitting cooling improve existing crushers?
A: Yes, aftermarket kits can reduce bearing temps by 15-20°C.
A 500TPH facility upgraded to water-cooled C6X200 jaw crushers, achieving:
– Bearing lifespan extended from 6 to 18 months
– Downtime reduced by 30%
– Throughput maintained at 48°C ambient temperature
Proper pitman cooling directly impacts crusher availability and total cost of ownership in aggregate production lines.
