The Sayaji stone crusher machine is a robust solution for primary and secondary crushing in aggregate production lines. Designed for high-capacity processing of hard rocks like granite, basalt, and limestone, it features a heavy-duty structure with manganese steel jaws or impact plates for extended wear resistance.
– Crushing Capacity: 50–300 TPH (varies by model)
– Feed Size: Up to 500mm
– Motor Power: 30–200 kW
– Output Size: Adjustable (20–80mm for base layers, 5–20mm for sand)
| Model | Max Feed Size (mm) | Power (kW) | Weight (tons) |
|---|---|---|---|
| SJ-3624 | 500 | 75 | 12.5 |
| SJ-4836 | 600 | 150 | 22.8 |
| SJ-6048 | 700 | 200 | 34.2 |

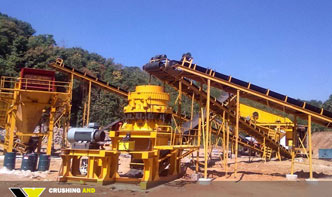

Sayaji crushers are often paired with vibrating screens, cone crushers, and VSI sand makers to form a complete sand/aggregate production line. For example:
1. Primary Crushing: Jaw crusher (SJ-3624) reduces large rocks to 150mm.
2. Secondary Crushing: Cone crusher further refines to 40mm.
3. Tertiary Stage: VSI crusher produces 0–5mm sand for concrete mixes.
Q: How to maintain the jaw plates?
A: Rotate or replace plates every 500–800 hours for abrasive materials.
Q: Can it process wet clayey rocks?
A: Not recommended; pre-screening is advised to avoid clogging.
A 200 TPH plant
