Gold cyanidation plants require specialized equipment to efficiently extract gold from ore. Key components include jaw crushers, ball mills, leaching tanks, carbon adsorption columns, and electrowinning systems. Each unit plays a critical role in crushing, grinding, leaching, and gold recovery processes.
| Equipment | Model | Capacity | Power (kW) | |
|---|---|---|---|---|
| Jaw Crusher | PE-600×900 | 50-160 t/h | 75 | |
| Ball Mill | MQY2740 | 15-20 t/h | 400 | |
| CIL Leaching Tank | TJ-3000 | 3000 L | 22 | |
| CIP Adsorption Column | CIP-2500 | Td>>2500 L | >18 |

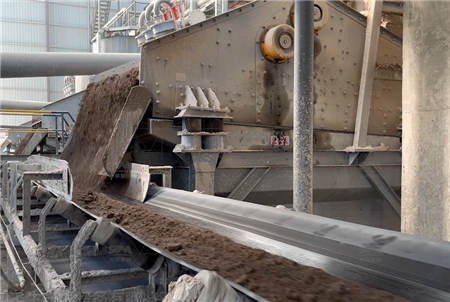

Primary Jaw Crusher → Secondary Cone Crusher → Tertiary VSI Sand Maker → Vibrating Screen
This setup yields 0-5mm manufactured sand , 5-20mm fine aggregate , and 20-40mm coarse aggregate simultaneously .
FREQUENTLY ASKED QUESTIONS
Q : What is the optimal feed size for cyanidation ?
A : Ideally below 200 mesh (74μm) after grinding .
Q : Can tailings be reused as construction materials ?
A : Yes , after proper detoxification and grading .
Q : Typical gold recovery rate ?
A : 85%-95% with modern CIL/CIP circuits .
ENGINEERING CASE STUDY
Project : Tanzania 500t/d Gold-Sand Co-production Plant
Configuration : PE750×1060 Jaw Crusher + HST315 Cone Crusher + CIP Circuit
Outputs :
