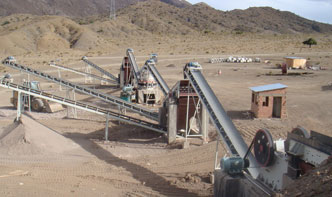

For efficient gold ore processing, a well-designed crushing and sand-making production line is essential. Key equipment includes jaw crushers, cone crushers, vertical shaft impactors (VSI), and vibrating screens to produce high-quality aggregates for further extraction.
| Equipment | Model | Capacity (t/h) | Power (kW) |
|---|---|---|---|
| Jaw Crusher | PE-600×900 | 50-120 | 75 |
| Cone Crusher | HPT-200 | 90-250 | 160 |
| VSI Sand Maker | S8-1145 | 60-280 | (2×)132 |
| Vibrating Screen | 3YK2160 |
Multi-layer vibrating screens classify crushed materials into 0-5mm (sand), 5-10mm, and 10-20mm aggregates. Gold-bearing particles are concentrated through gravity separation post-crushing.
Location: Luzon Island | Ore Type: Quartz Vein Gold Ore
Equipment Used: PE750×1060 Jaw Crusher + HST315 Cone Crusher + VSI1145 Sand Maker
Output: 150t/h | Final Product: 0-3mm sand (for cyanidation) + 3-10mm gravel (heap leaching)
Q1:What’s the ideal moisture content for VSI-produced sand?
A1:<6% ensures smooth screening.
Q2:How to reduce crusher wear in abrasive gold ore?
A2:Use tungsten carbide liners and maintain ≤15% feed moisture.
Q3:Dust control methods for dry systems?
A3:Pulse jet bag filters + water spray at transfer points.
Note: Equipment configurations vary
