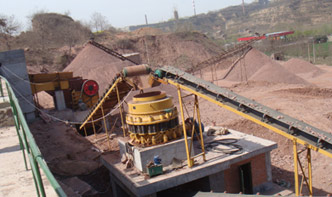

The Cedar Rapids Roller Cone Crusher is a robust secondary/tertiary crushing solution for hard rock and abrasive materials in aggregate plants. Its patented roller bearing design reduces maintenance downtime while delivering consistent output gradation.
| Model | Max Feed Size | Capacity (TPH) | Power (HP) |
|---|---|---|---|
| MVP380X | 7.5″ (190mm) | 200-400 | 300 |
| MVP450X | 9″ (230mm) | 300-600 | 400 |
| MVP550X | 10″ (250mm) | 400-800 | 500 |
Notable features include:
– Automatic tramp relief system
– Hydraulic adjustment with push-button controls
– Patented “Rollercone” inter-particle crushing action
A standard production line might include:
1. Primary jaw crusher (e.g., Cedar Rapids JW42)
2. Cedar Rapids Roller Cone Crusher (secondary)

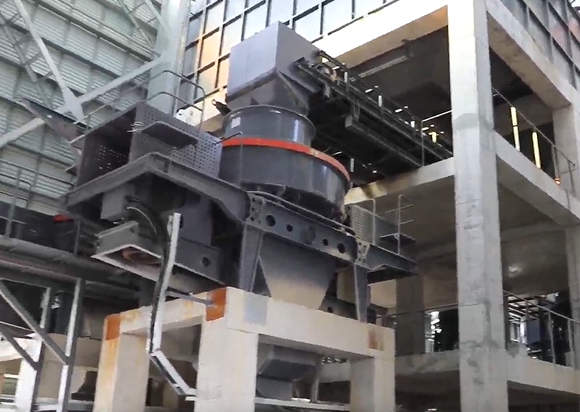

3. Vertical shaft impactor (tertiary shaping)
4. Multi-deck screening system
5. Sand washing equipment
Q: What’s the typical reduction ratio?
A: 4:1 to 6:1 depending on closed-side setting.
Q: Recommended liner material?
A: Manganese steel for most applications, ceramic inserts available for highly abrasive materials.
Q: Minimum required clearance for maintenance?
A: 36″ (900mm) around crusher perimeter.
Application: Producing ASTM C33 concrete sand
Throughput: 550 TPH sustained
Configuration:
– MVP450X cone crusher
– 5/8″ CSS setting
– Achieved 95% passing 3/8″ with <5% oversize
Maintenance records showed liner life of 650,000
