The small metals jaw crusher 250×400 is a versatile primary crusher ideal for sand and aggregate production lines. With its compact design and robust construction, it efficiently processes hard rocks, ores, and demolition waste into 20-60mm coarse aggregates for further crushing or direct use in construction.
| Parameter | Value |
|---|---|
| Feed Opening | 250x400mm |
| Max Feed Size | 210mm |
| Discharge Range | 20-60mm (adjustable) |
| Capacity | 5-20t/h |
| Motor Power | 15kW |
| Weight | 2.8t |
| Swing Jaw Plate Material | Mn13Cr2 Steel |
1. Vibrating Feeder → 250×400 Jaw Crusher → Impact Crusher (Secondary) → Vibrating Screen → Sand Maker (Optional) → Finished Products
This configuration achieves 30-50tph output of 0-5mm sand and 5-20mm aggregates.
Q: Can it process reinforced concrete?
A: Yes, but requires pre-screening to remove large rebar pieces exceeding feed size.
Q: What’s the service life of wear parts?
A: Jaw plates last ~3 months processing granite (8h/day operation).
Q: Is mobile version available?
A: Yes, can be mounted on wheeled chassis with diesel generator option.

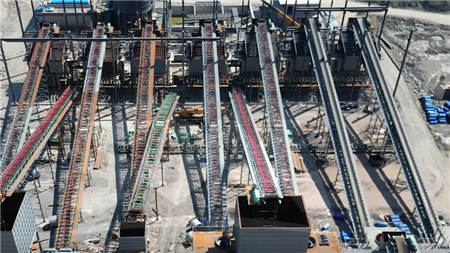

Sri Lanka Urban Construction Waste Recycling Plant:
Used three JC250x400 units to process 150t/day concrete debris into road base materials, achieving 85% recycling rate with final products meeting BS EN 13242 standards.
